Model:

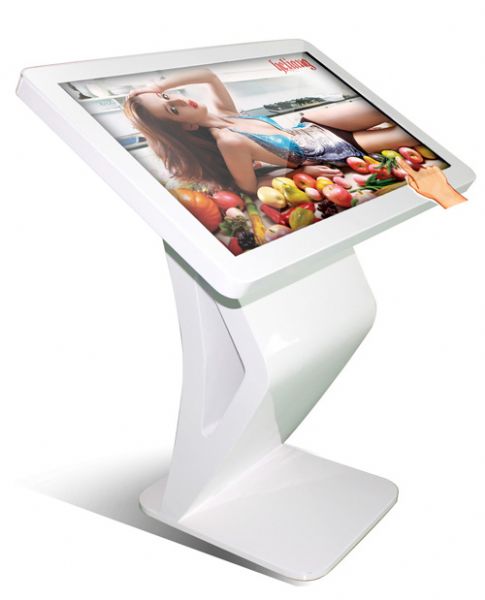

Name: Slant touch one machine

Description: 1. High touch sensitivity, speed, no drift;
2. Industrial machine chassis configurations, complete functions, more stable performance;
3. Infrared touch panel, high transmittance, uprising strong, scratch wear.

  • Attribute
  • Picture
  • Customer



Panel Specification Model LY-T4200LD2 LY-T4700LD2 LY-T5500LD2
Display
Size
42" 47" 55"
Display
scale
16:9 16:9 16:9
Brightness 400cd 500cd 500cd
Contrast 3000:1 4000:1 4000:1
Display area 930.2mm(W)×523mm(H) 1041mm(W)×586mm(H) 1211mm(W)×682mm(H)
PC configuration Grade Processor Memory HDD graphics card Operation system
Standard Intel Dual core i3 2G 500G Intel Hd video card WIN7/10
midium Intel Dual core i5 4G 500G Intel Hd video card WIN7/10
High Intel Dual core i7 8G 1T Intel Hd video card WIN7/10
Android MSD6369/901 DDR3 1G 4G Integrated graphics Android4.2
PC Ports Ports  USB 2.0           * 4
 The network card   * 1
 VGA              * 1
 HDMI             * 1
 Audio I/O Port      * 1
 DC 12V power     * 1
Touch screen Touch technology  Ir, optical, nano touch
Touch way  Finger, pen, gloves or other opaque objects
life  Touch more than 60 million times
The fuselage The fuselage material  Cold rolled steel sheet
casing material  Aluminum alloy + toughened glass
SIZE TBD TBD TBD
Weight TBD TBD TBD
Others Speaker  10W*2
Power  AC 100-240V
attachment  The power cable, manual, warranty card, certificate of approval, hanging bracket
