Home > 首页产品 > LCD splicing wall
| Model： | LY-LW421 |

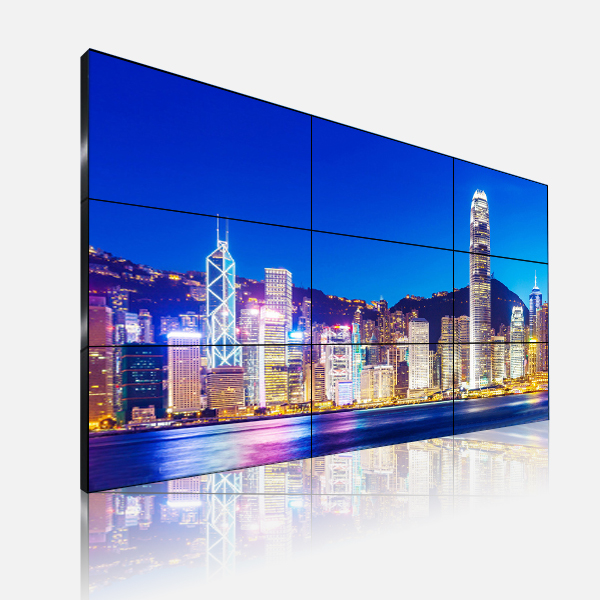

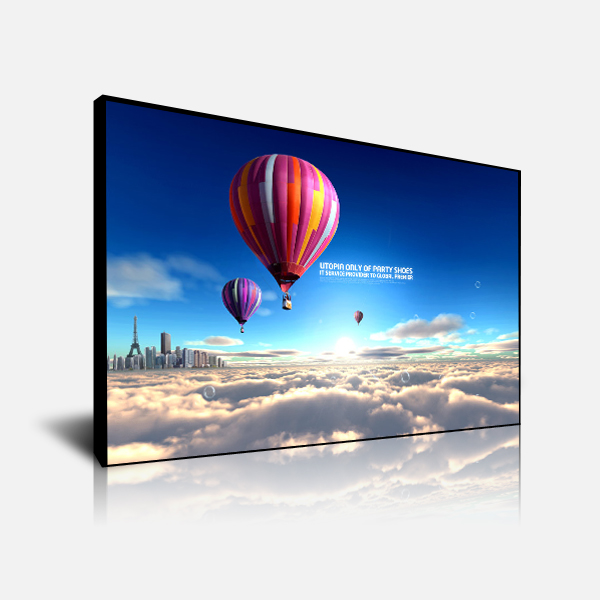

| Name： | 42 Inch Narrow Bezel LCD Video Wall |
| Description： |
● All screens can display the same or different signal sources on a single screen. ● Combinations :2×2、2×3、3×3、3×4、4×4、5×4、5×5 or any combination customized. ● Support 7×24 hours, 365 days of continuou |
- Attribute
- Picture
- Customer
| Specifications | Model No | LY-LW421 |
| Panel type | LG TFT-LED | |
| Resolution | 1920*1080 | |
| bezel | 22mm (UP:11mm; DOWN:11mm; LEFT :11mm; RIGHT:11mm) | |
| display area | 930.24（W)*523.26(H) | |
| Pixel pitch (HxV) | 0.745(H)*0.745(V) | |
| Brightness | 500CD/㎡ | |
| Contrast | 4500:1 | |
| Visual Angle (H/V) | 178（H/V） | |
| Response Time | 8MS | |
| Input and output | VGA input | 1 |
| DVI input | 1 | |
| HDMI input | 1 | |
| BNC input | 2 | |
| BNC output | 1 | |
| RS232 output | 1 | |
| Power supply | AC voltage | AC100~240V;50/60HZ |
| Power consumption | ≤180W | |
|
Standby Power Consumption |
＜3W | |
| Temperature | 0℃~40℃ | |
| Physical | Weight | 18KG |
| Menu language | Chinese /English | |
| Body dimension(Lx W x H)mm | 957.45mm(H)×550.2mm(V) | |
| Installation | Wall-mounted, floor stand, cabinet installation optional |
